SPAC Pneumatic Products — Authorized Dealer in Noida
SPAC Pneumatic is a leading Indian manufacturer of pneumatic cylinders, valves, fittings, FRL units, and pneumatic accessories. Made in India, SPAC products comply with ISO 15552, ISO 6432, and ISO 21287 standards. Shri Narayan Machinery LLP is an authorized dealer for SPAC Pneumatic products in Noida and Delhi NCR.
Brand Info
SPAC Pneumatic Product Catalog
Browse our complete range of SPAC Pneumatic products. Click on any series to view detailed specifications, pricing, and availability.
Pneumatic Cylinders

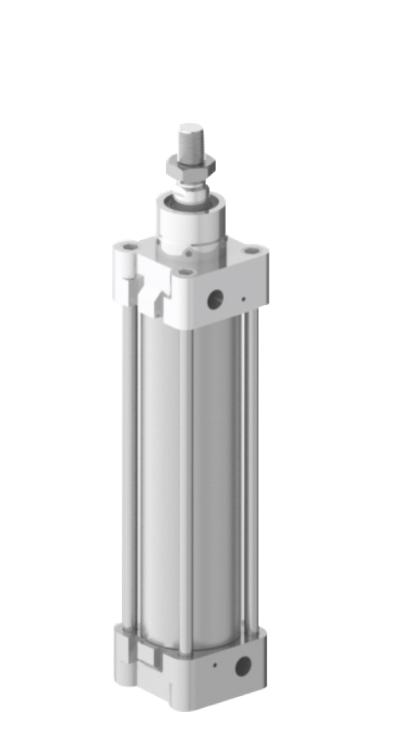

ESNC Tie Rod Cylinder
The SPAC ESNC Series is an ISO 15552 compliant tie rod pneumatic cylinder designed for heavy-duty industrial automation. Available in bore sizes from 32mm to 320mm and stroke lengths from 25mm to 1000mm, the ESNC cylinder features adjustable cushioning at both ends for smooth operation and extended component life. It operates on compressed air at 1-10 kgf/cm² pressure and is available in non-magnetic (ESNC), magnetic sensor-ready (ESNC-S), and double-ended (ESNC-2S, ESNC-2SS) variants. The ESNC series is the most widely used pneumatic cylinder range in Indian manufacturing, suitable for automation lines, packaging machines, material handling, presses, and assembly systems. Shri Narayan Machinery LLP is an authorized SPAC dealer in Noida, stocking the complete ESNC range with expert technical support.
View Details & Specs

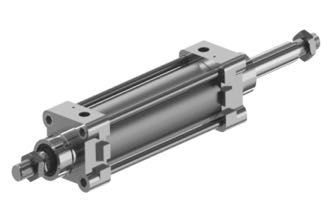

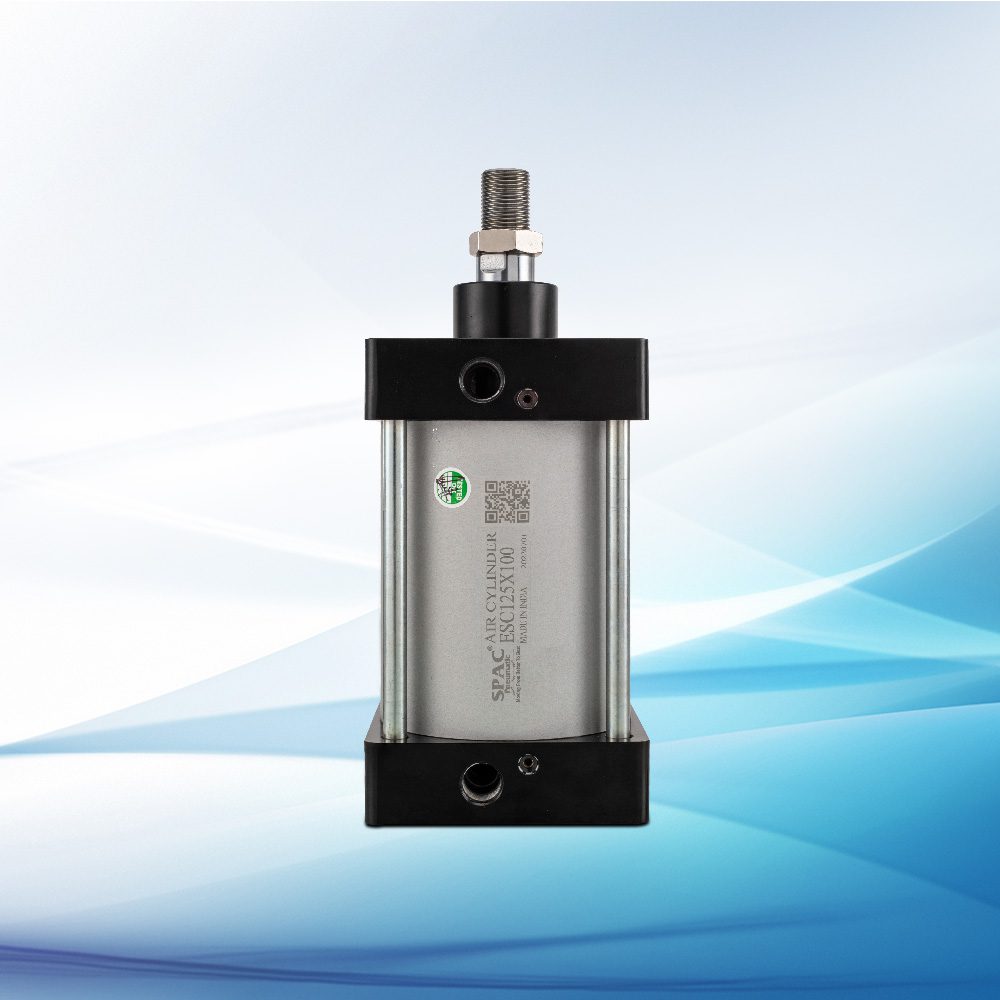

ESC Tie Rod Cylinder
The SPAC ESC Series is a compact tie rod pneumatic cylinder designed for general-purpose industrial automation where ISO 15552 compliance is not mandatory. Available in bore sizes from 32mm to 125mm with stroke lengths from 25mm to 1000mm, the ESC offers reliable double-acting performance at a lower cost than the ESNC series. Features adjustable cushioning at both ends and is available in non-magnetic (ESC), magnetic (ESC-S), double-ended (ESC-2S), and magnetic double-ended (ESC-2SS) variants. The ESC series is widely used in small to medium factories, workshops, and automation projects across India where moderate force output is sufficient.

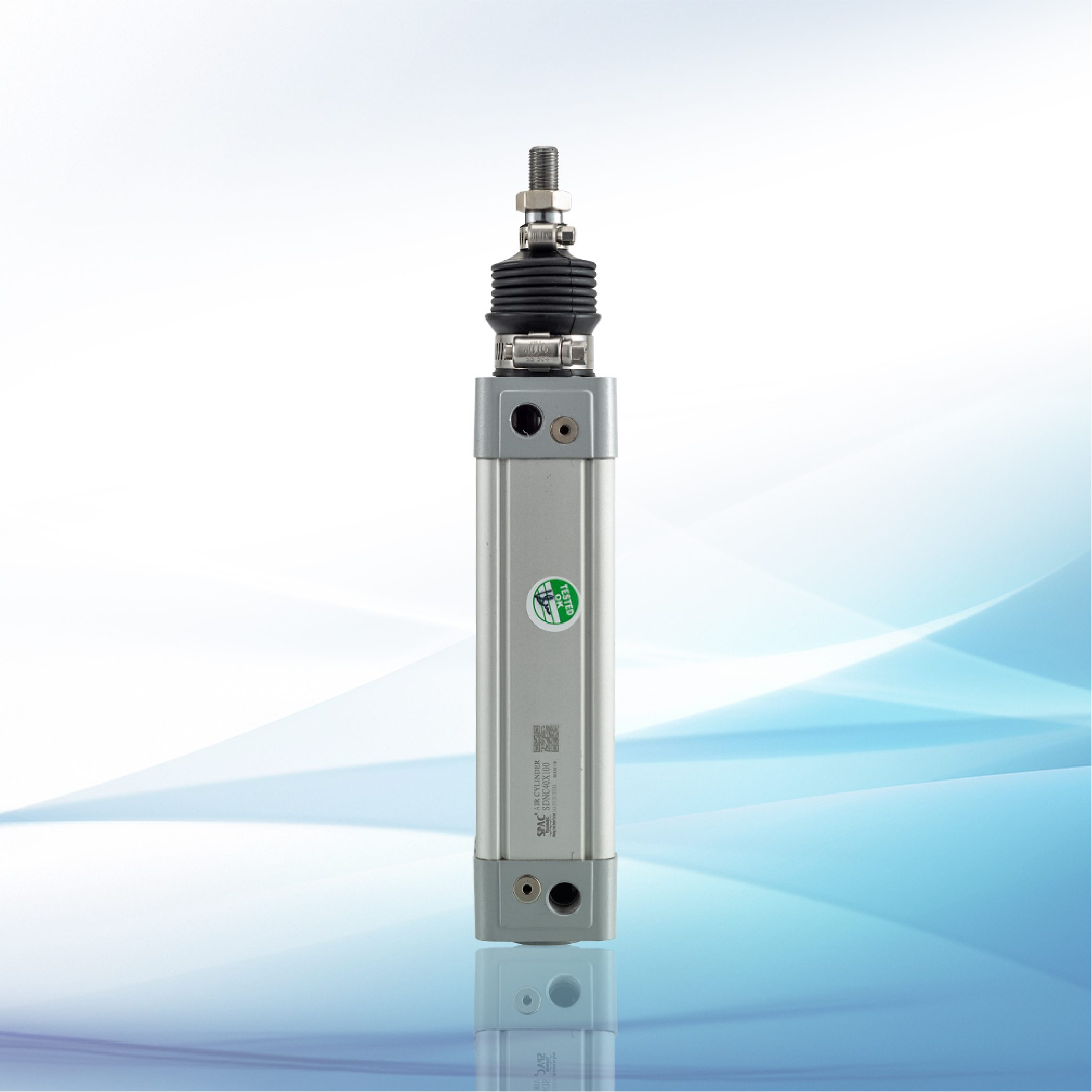

View Details & SpecsSDNC Profile Cylinder
The SPAC SDNC Series is an ISO 15552 compliant profile (compact body) pneumatic cylinder. Unlike tie rod cylinders that use four external rods to hold the end caps, profile cylinders feature a one-piece extruded aluminum body with integrated T-slot mounting grooves. This makes them lighter, more compact, and easier to mount directly onto machine frames without separate brackets. The SDNC is ideal for modern automation systems where space optimization and clean machine design are priorities.
View Details & Specs

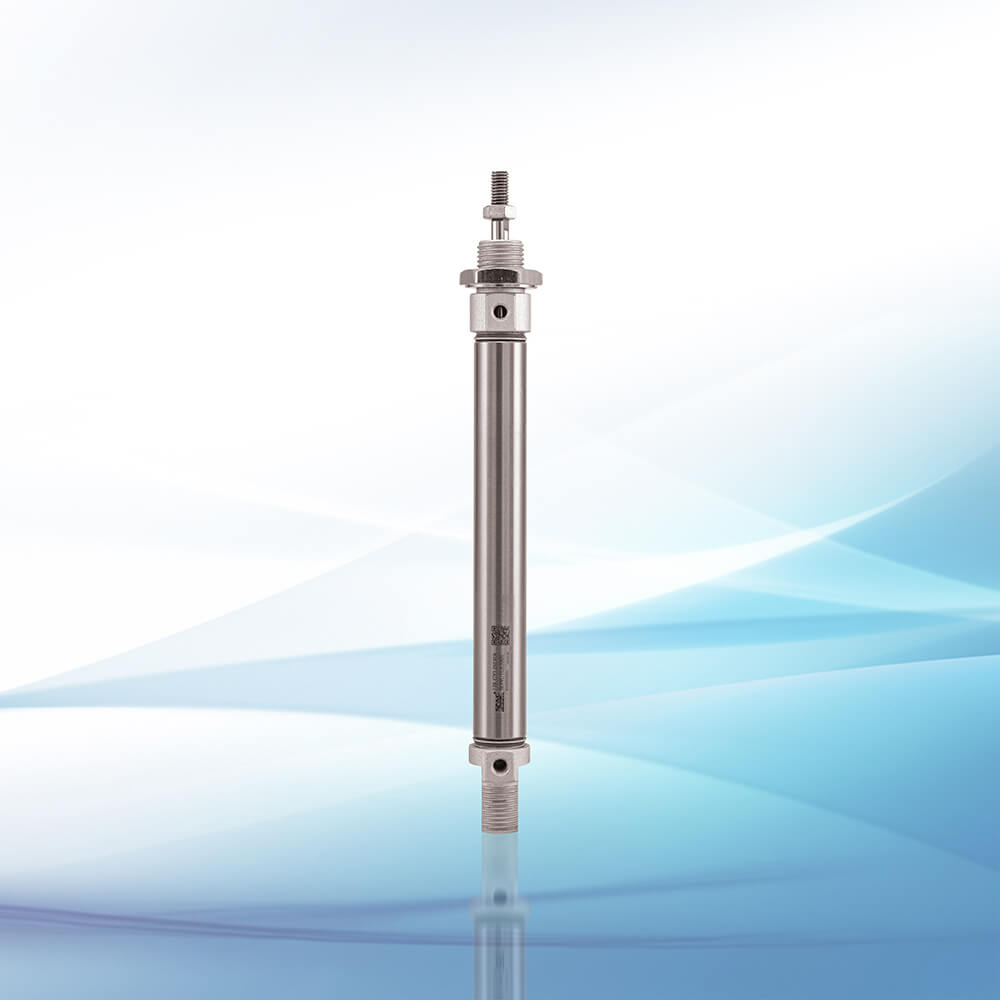

SDNU Mini Cylinder
The SPAC SDNU Series is an ISO 6432 compliant round body pneumatic cylinder designed for applications requiring small bore sizes from 8mm to 25mm. These compact, lightweight cylinders are ideal for pick-and-place mechanisms, label applicators, precision positioning, and anywhere space is extremely limited. The stainless steel tube body provides corrosion resistance suitable for food processing and pharmaceutical environments.
View Details & SpecsPneumatic Fittings & Connectors

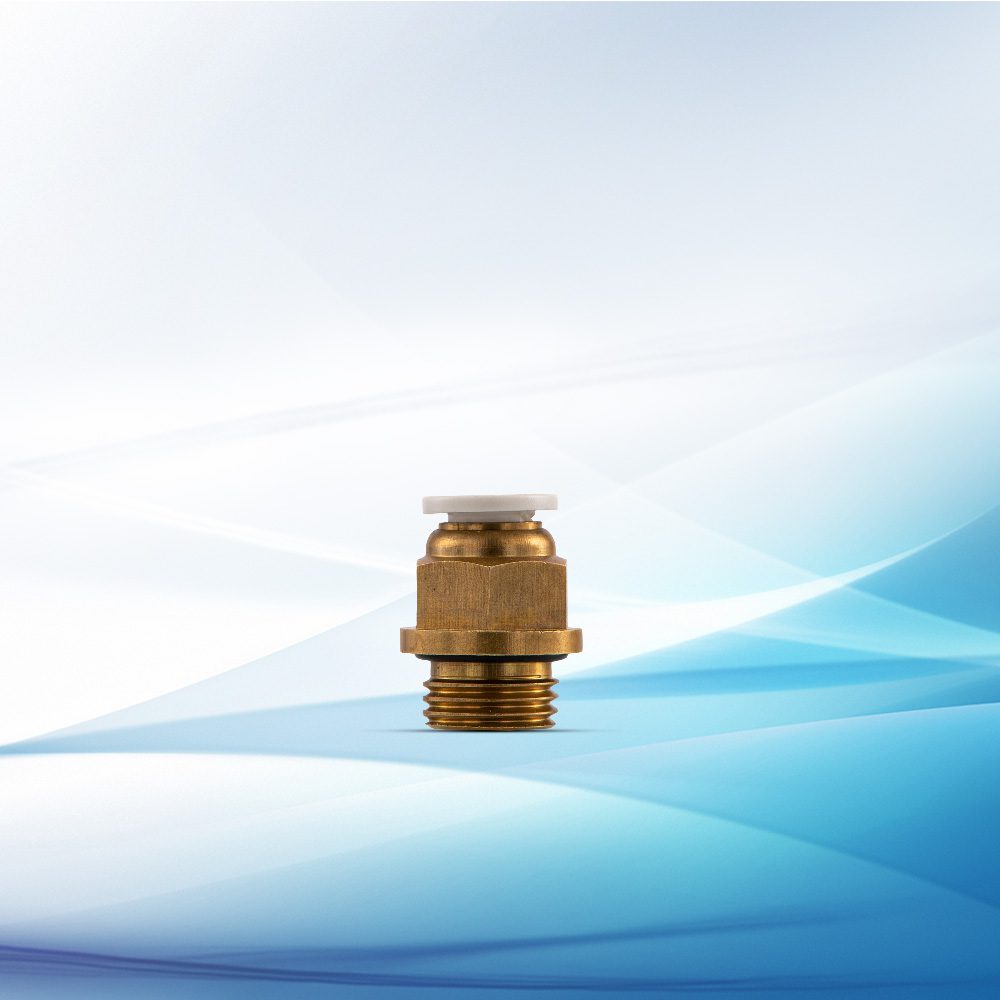

A-Series Fittings
SPAC A-Series push-in fittings are high-quality pneumatic connectors designed for quick, tool-free tube connections in industrial automation systems. Simply push the tube into the fitting for an instant, leak-free seal — pull the collet ring to release. Available in over 20 connector types including straight connectors (APCG), elbow connectors (APLG), tee connectors (APBG), Y-connectors (APXG), flow control valves (ASLG), and cross connectors (APZG). The A-Series supports tube OD from 4mm to 12mm with G-thread sizes from M5 to 1/2 inch. Made from nickel-plated brass with PBT plastic bodies, these fittings handle operating pressures up to 10 kgf/cm². Available at Shri Narayan Machinery in Noida.
View Details & Specs

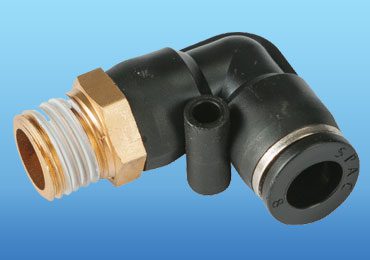

E-Series Fittings
SPAC E-Series push-in fittings are a premium range of pneumatic connectors supporting larger tube sizes up to 16mm OD. The E-Series uses R-thread (tapered BSP) connections and includes specialty fittings such as banjo elbows, hand valves, and bulkhead connectors not available in the A-Series. Ideal for high-flow pneumatic systems and larger bore cylinders requiring increased air volume. The E-Series offers superior flow characteristics and durability for demanding industrial environments.
View Details & Specs

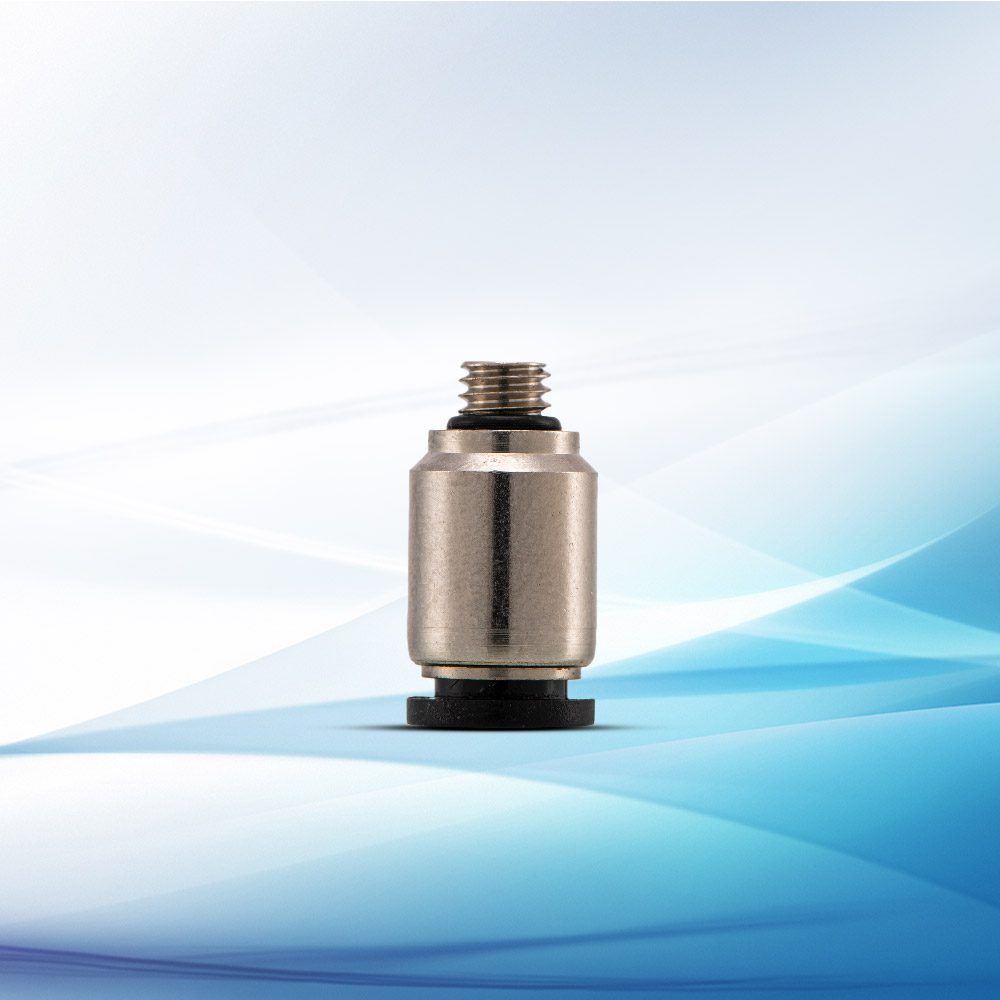

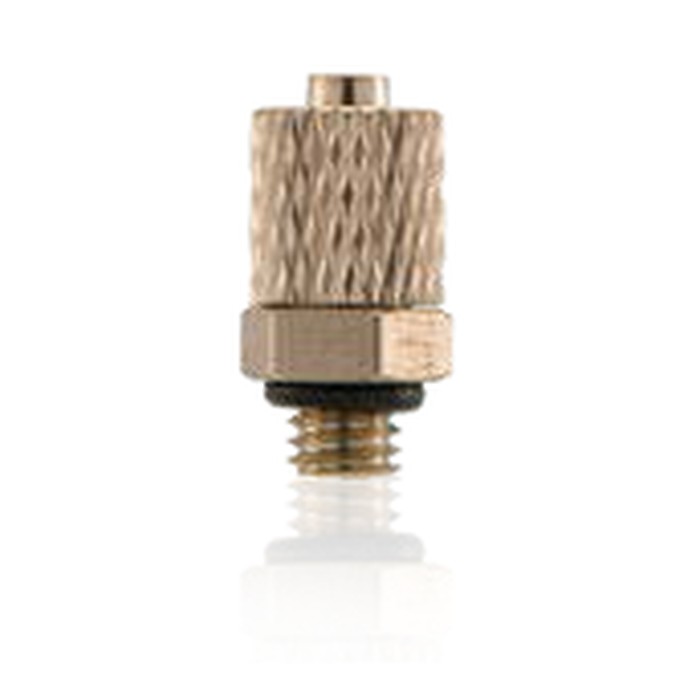

Mini Fittings
SPAC Mini Push-In Fittings are ultra-compact pneumatic connectors engineered for space-constrained applications where standard A-Series or E-Series fittings are too large. Available in straight (MI-EPOC), elbow (MI-EPL), and flow control (MI-VPC, MI-VPL) configurations, these miniature fittings accept 4mm and 6mm tube OD with M5 and 1/8 inch thread connections. The all-metal nickel-plated brass construction ensures durability even in confined instrument panels and medical pneumatic assemblies. Mini fittings are ideal for electronics assembly, laboratory instruments, dental equipment, and any application demanding precise air delivery through narrow passages. Shri Narayan Machinery LLP stocks the complete SPAC mini fittings range in Noida for same-day availability across Delhi NCR, eliminating the need for costly import lead times on miniature pneumatic components.
View Details & Specs
Pneumatic Tubing & Hoses

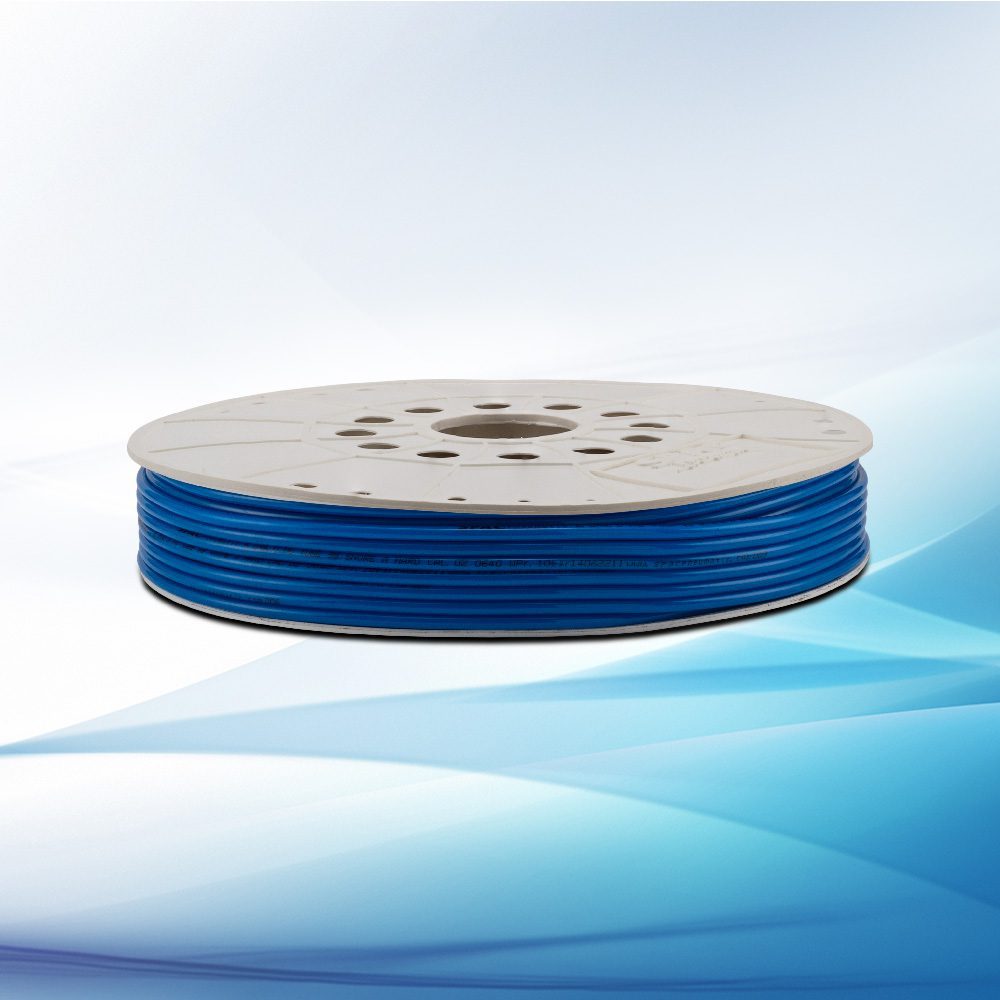

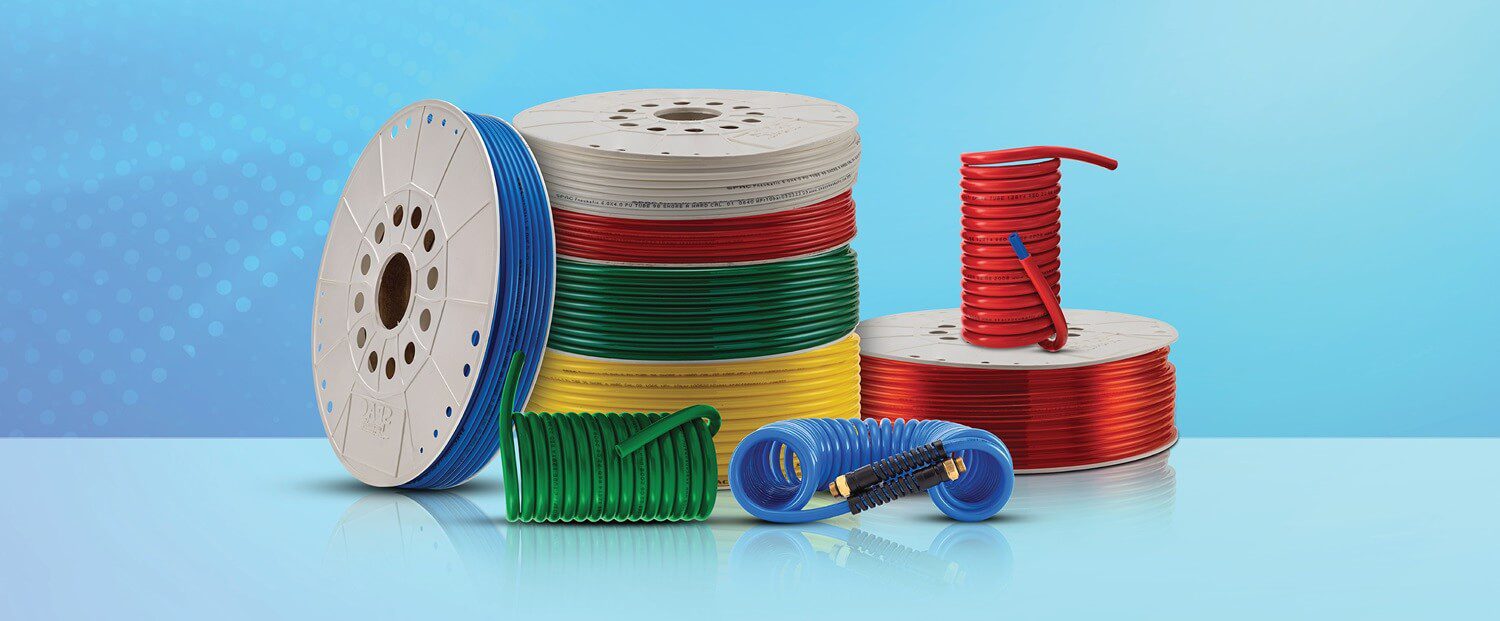

PU Tubes & Recoils

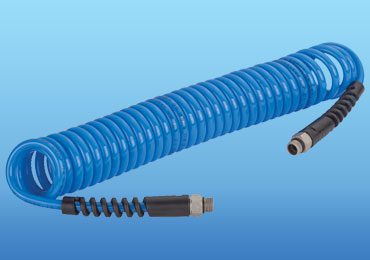

SPAC Polyurethane (PU) tubes and recoil hoses are the primary air-conveying consumables for all pneumatic systems. The EU-series straight tubes are manufactured from 100% TPU (Thermoplastic Polyurethane), lab-tested and certified RoHS, REACH, and Prop 65 compliant. Available in OD sizes from 4mm to 16mm, roll lengths from 50 to 200 metres, and multiple colour options including blue, yellow, black, green, red, transparent, clear blue, clear red, and milky white. The EUC-series recoil hoses feature pre-coiled PU tubing with swivel connectors for quick-connect applications, available in G1/4 inch and G3/8 inch thread with lengths from 3 to 15 metres. Anti-spark AU-series tubes with fire-resistant outer layers are also available for welding environments. Shri Narayan Machinery LLP in Noida stocks the full SPAC PU tubing range for immediate dispatch.
View Details & Specs

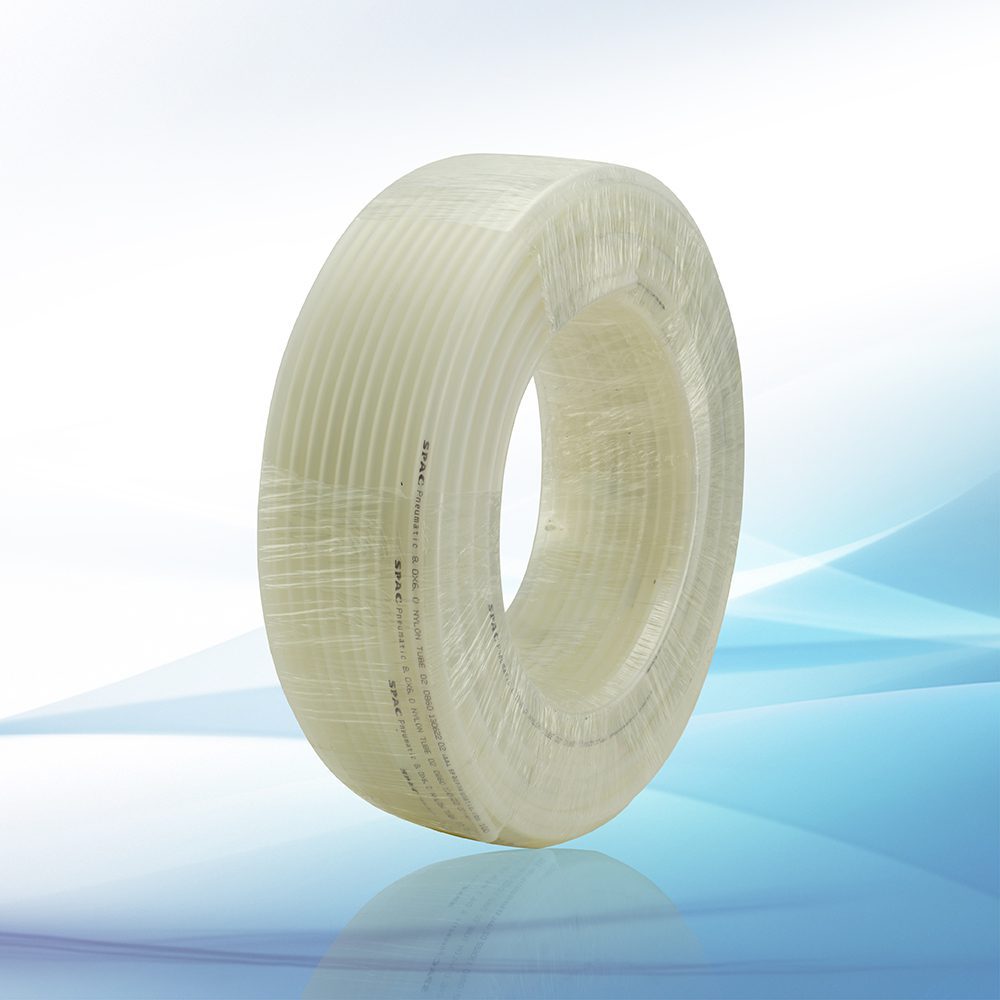

Nylon Tubes
SPAC Nylon Tubes in EA and EB Series offer a rigid, chemical-resistant alternative to polyurethane tubing for pneumatic applications requiring higher stiffness, longer straight runs, or exposure to oils, solvents, and chemicals. The EA Series is available in milky white in OD sizes from 4mm to 12mm, while the EB Series comes in blue and black options with OD sizes from 4mm to 16mm. Nylon tubing has a higher natural rigidity than PU, making it the preferred choice for long, straight pneumatic runs in factories, outdoor installations, and chemical processing environments where PU tubing would soften or swell. Operating at 0 to 10 kgf/cm² with a temperature range of -5 to 60 degrees Celsius, SPAC nylon tubes are compatible with all standard push-in fittings. Available at Shri Narayan Machinery LLP in Noida.
View Details & Specs
Buy Genuine SPAC Pneumatic Products in Noida
As an authorized dealer for SPAC Pneumatic, Shri Narayan Machinery LLP stocks genuine products with full manufacturer warranty. Visit our store at C-101, Sector 9, Noida or call +91-9811104037 for product availability, pricing, and bulk order discounts. We serve manufacturing units, factories, and workshops across Noida, Greater Noida, and Delhi NCR.
